WASHING LINE
| Brand | |
|---|---|
| Output |
800 kg/h |
Find similar machines
Polyrema Reifenhäuser SFA 1600 HSP
WASHING LINE
Complete washing line for sale

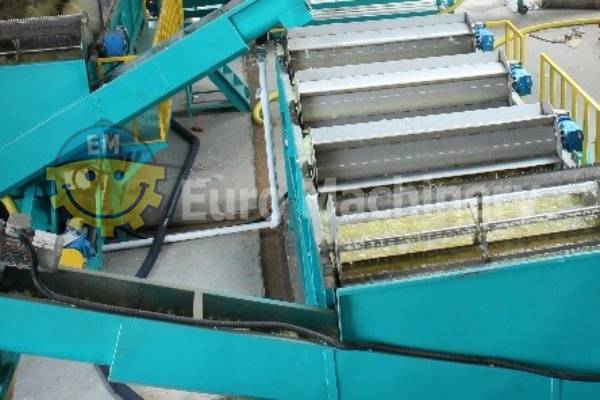

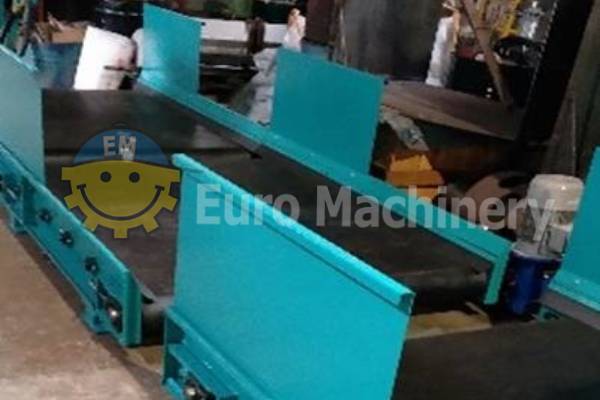

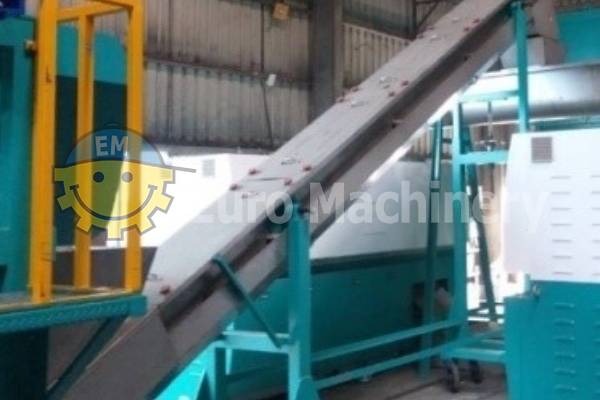

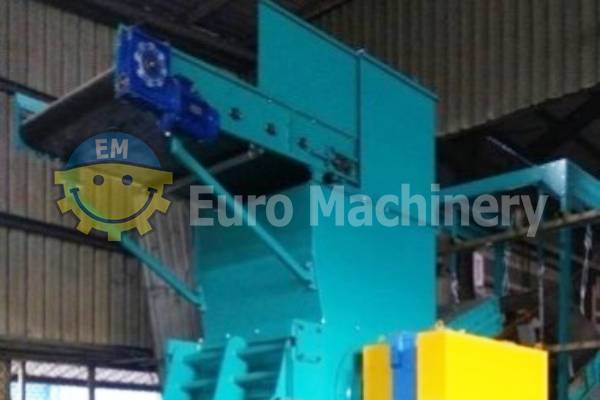

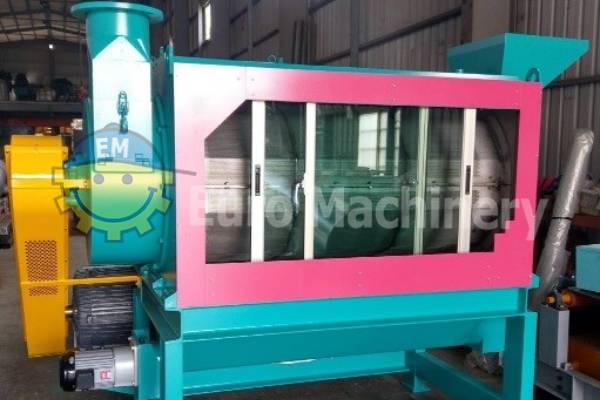

Complete washing line for sale. Washing line for process PE, PP, PS, ABS, LDPE, HDPE, MDPE. This washing line is equipped with conveyor belt, shredder, washing tank, screw conveyor, crusher, friction washer, flotation tank, dryer, cyclone and screw press. Brand & Model: Chang Woen, Taiwanese brand Material that can be processed: PE, PP, PS, ABS, LDPE, HDPE, MDPE Output: Up to 800 kg/h, depending on the type of material and feeding rate. Conveyor belt:- Input belt conveyor
- L 2000mm x W 1200mm
- Motor: 3HP/2.25kW, Siemens
- Motor: 150HP/112.5kW, Siemens
- Size of mesh screen: Ø100mm
- Transmission: Gear reducer + Pulley
- Speed: 100~120 RPM
- Size of chamber: 1540x710mm
- Rotor diameter: 466mm
- Rotor knives: 105 pcs
- Stator knives: 6 pcs
- Spec. of pressure system: 1050x1600mm
- Oil pump: 3HP/2.25kW
- L 6500mm x W 1200mm
- Motor: 3HP/2.25kW, Siemens
- Dimensions: L6000 x W1500 x H2570 mm
- Bottom screw motor: 5HP/3.75kW, Siemens
- Scraper motor: 5HP/3.75kW, Siemens
- Shaft: 7.5HP/5.625kW, Siemens, 2 pcs
- Output roller: 5HP/3.75kW, Siemens
- Discharge chute design
- Spec.: Ø400 x L6500mm
- Motor: 5HP/3.75kW, Siemens
- Motor: 125HP/93.75kW, Siemens
- Rotor diameter: Ø700mm
- Inlet opening
- Speed: 650 RPM
- Stator knives: 6 pcs
- Rotor knives: 16 pcs
- Material of cutter: SKH-2
- Hydraulic hopper
- Oil pump: 1HP/0.75kW
- Discharge screw: 2HP/1.5kW
- Size of mesh screen: Ø50mm
- Spec.: Ø400 x L6500mm
- Motor: 5HP/3.75kW, Siemens
- Motor: 30HP/22.5kW, Siemens
- Speed: 100~120 RPM
- Including ladder and frame
- Including inspection window
- Dimensions: L6000 x W1500 x H2570mm
- Bottom screw: 5HP/3.75kW, Siemens
- Scraper motor: 5HP/3.75kW, Siemens
- Roller: 1HP/0.75kW, Siemens, 3 pcs
- Output roller: 5HP/3.75kW, Siemens
- Output screw: 3HP/2.25kW, Siemens
- Motor: 125HP/93.75kW, Siemens
- Diameter: Ø750mm
- Speed: 1800 RPM
- Discharge motor: 2HP/1.5kW
- Diameter of cyclone: Ø800mm
- Dimensions: L1500 x W500 x H500mm
- Dimensions: L6000 x W1500 x H2570mm
- Roller: 1HP/0.75kW, Siemens, 3 pcs
- Output roller: 5HP/3.75kW, Siemens
- Spec.: Ø400 x L6500mm
- Motor: 5HP/3.75kW, Siemens
- Spec.: Ø400 x L4500mm
- Motor: 3HP/2.25kW, Siemens
- Motor: 125HP 6P/93.75kW, Siemens)
- Size of input hopper: 650x650mm
- Diameter: Ø350mm
- Transmission: Planetary type reducer (Made in Italy)
- Cutter motor: 10HP/7.5kW, Siemens
- Blower: 7.5HP/5.625kW, Siemens
- Cooling pump: 1HP/0.75kW
- Diameter of output pipe: Ø140mm
- Including water tank, 1 pc
- Diameter of cyclone: Ø800mm
- Two inlet design
- Equipment interlock design
